GDQ-J-A pneumatic high vacuum baffle valve

GDQ-J-A pneumatic high vacuum baffle valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

GDQ-J-A Series Normally Closed Pneumatic High Vacuum Flapper Valve is a solenoid steering valve which relies on compressed air as the starting and closing power of the valve plate. When power is lost or compressed air is lost, the valve under the diameter of DN80 will automatically close the valve by spring force. The valve above DN100 will quickly close the original air of the cylinder through the solenoid valve group using one-way valve. The source pressure reaches the automatic closing valve. Thus, the function of rapidly cutting off the airflow in the vacuum system is achieved. The GDQ-J type is the angle pass type, and the GDQ-S type is the three way with the pre draining.

The GDQ-J-A series normally closed pneumatic high vacuum baffle valves are suitable for working air and non corrosive gases.

Main technical parameters

適用范圍(Pa)
105~1.3x10-4
閥門漏率(Pa.L/S)
≤1.3x10-5
介質溫度(℃)
-25~+80(密封材料為丁腈橡膠)
-30~+150(密封材料為氟橡膠)
氣源壓力(MPa)
0.4~0.8
安裝位置
DN<300任意,dn≥300垂直< div="">
電源電壓
標準出廠:AC220V/50Hz
特殊指定:AC110V;DC24V;DC12V等
信號反饋
標準出廠:不帶反饋信號
特殊指定:磁性開關DC/AC5~240V

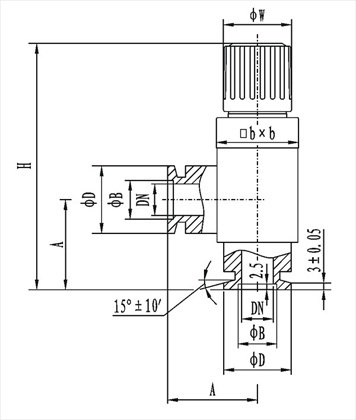

Main shape connection dimensions
型號
通徑(DN)
ΦD
ΦB
A
法蘭標準
GDQ-J10A/KF
10
30
12.2
30
GB4982
GDQ-J16A/KF
16
30
17.2
40
GB4982
GDQ-J25A/KF
25
40
26.2
50
GB4982
GDQ-J40A/KF
40
55
41.2
65
GB4982
GDQ-J50A/KF
50
75
52.2
70
/
活套法蘭連接尺寸
型號
通徑(DN)
ΦD
ΦB
A
n-ΦC
DNy(預抽口)
法蘭標準
GDQ-J50A
50
110
90
70
4-Φ9
/
GB/T6070
GDQ-J63A
63
130
110
88
4-Φ9
/
GB/T6070
GDQ-J80A
80
145
125
88
8-Φ9
/
GB/T6070
GDQ-J100A
100
165
145
108
8-Φ9
/
GB/T6070
GDQ-J125A
125
200
175
128
8-Φ11
/
GB/T6070
GDQ-J(S)150A
150
220
195
138
8-Φ11
DN40(GB4982)
JB919
GDQ-J(S)160A
160
225
200
138
8-Φ11
DN40(GB4982)
GB/T6070
GDQ-J(S)200A
200
285
260
200
12-Φ11
DN50(GB/T6070)
GB/T6070
GDQ-J(S)250A
250
335
310
208
12-Φ11
DN50(GB/T6070)
GB/T6070
GDQ-J(S)300A
300
380
350
250
8-Φ14
DN80(GB/T6070)
JB919
GDQ-J(S)320A
320
425
395
250
12-Φ14
DN80(GB/T6070)
GB/T6070
GDQ-J(S)400A
400
510
480
330
16-Φ14
DN100(GB/T6070)
GB/T6070
①GDQ-J(S)400A
400
500
465
330
16-Φ14
DN100(GB/T6070)
JB919
GDQ-J(S)500A
500
610
580
360
16-Φ14
DN125(GB/T6070)
GB/T6070
GDQ-J(S)600A
600
710
670
450
12-Φ21
DN160(GB/T6070)
JB919
GDQ-J(S)630A
630
750
720
450
20-Φ14
DN160(GB/T6070)
GB/T6070
GDQ-J(S)800A
800
920
890
520
24-Φ14
DN200(GB/T6070)
GB/T6070
注:采用JB919法蘭連接標準,其側口同樣為GB/T6070標準
